Capabilities

Our capabilities include:

Hobbing / Shaping / Shaving / Grinding / Rack

  HOBBING SHAPING SHAVING GRINDING RACK
Diameter 1/8″ – 40″ 1/8″ – 105″ 16″ 24″ 6″
Face Width 56″ 18″ 10″ 11″ 8″
Oal 360″ 72" 27″ 27″ 144″
Diametral Pitch 64 to 2 64 to 2 32 to 4 48 to 2.5 24 to 2
Module .4 to 13 .4 to 13 .8 to 6 .5 to 10 1 to 13

**The independant elements depend on the configuration of the part.**

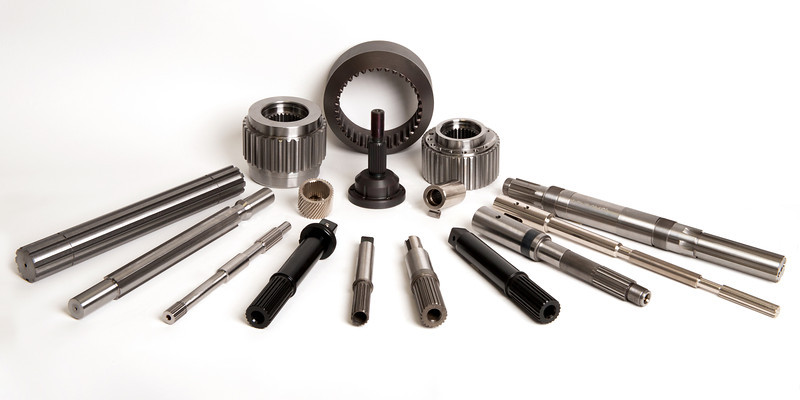

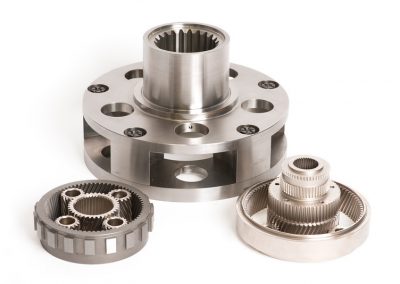

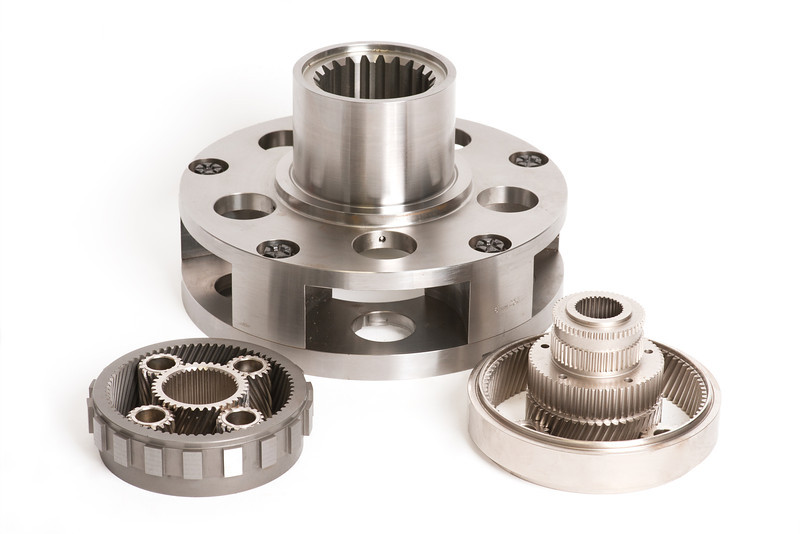

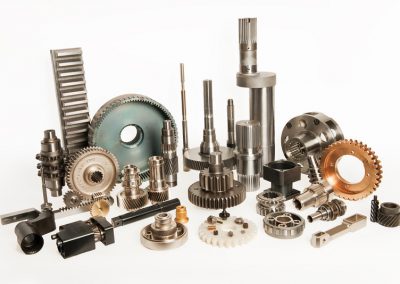

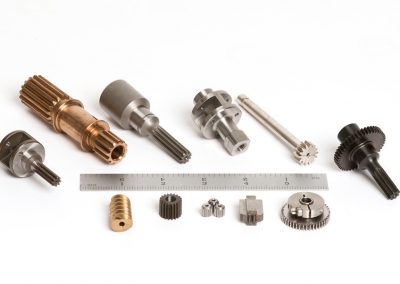

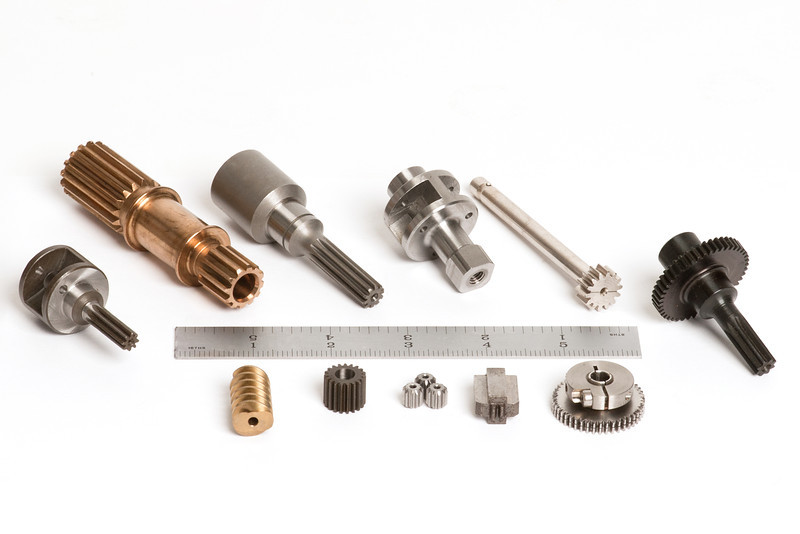

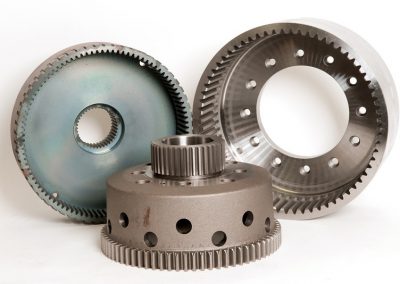

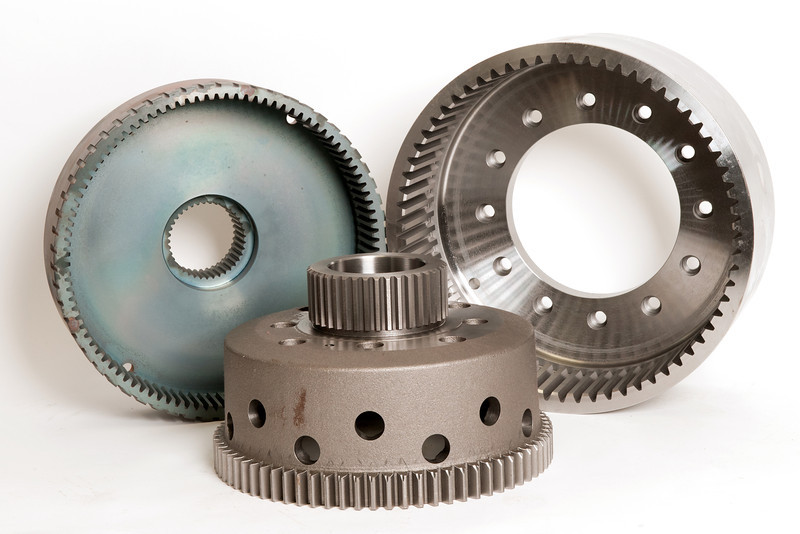

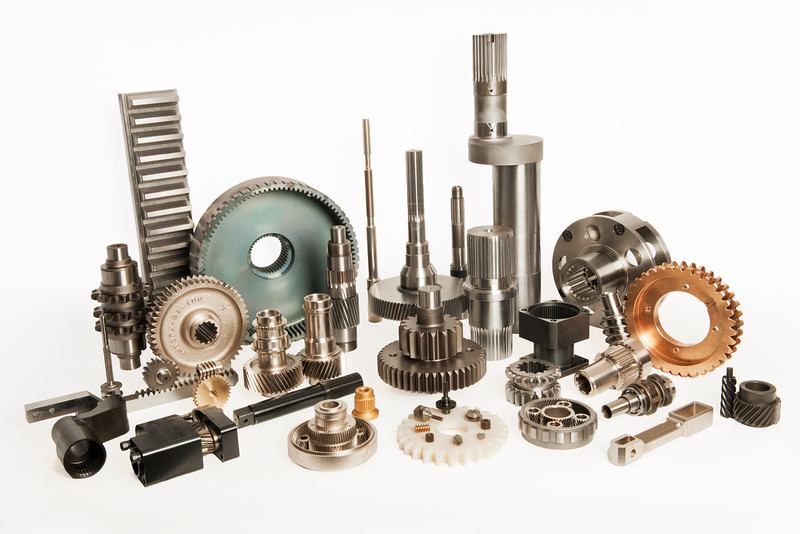

  • Helical Gears – Internal / External
  • Spur Gears – Internal / External
  • Ground Gears
  • Shaved Gears
  • Helical Racks
  • Spur Racks

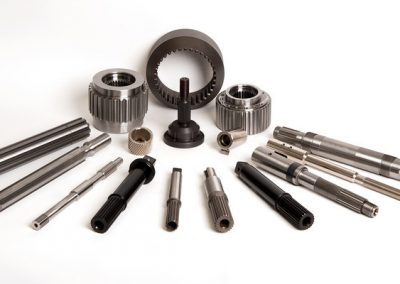

  • Spline Shafts
    – Involute
    – Straight Sided
    – Tapered
    – Serrations

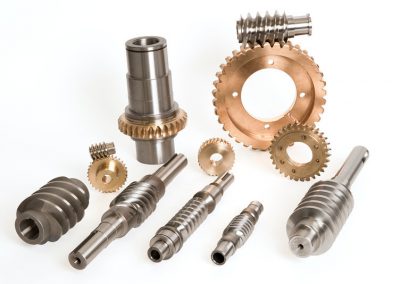

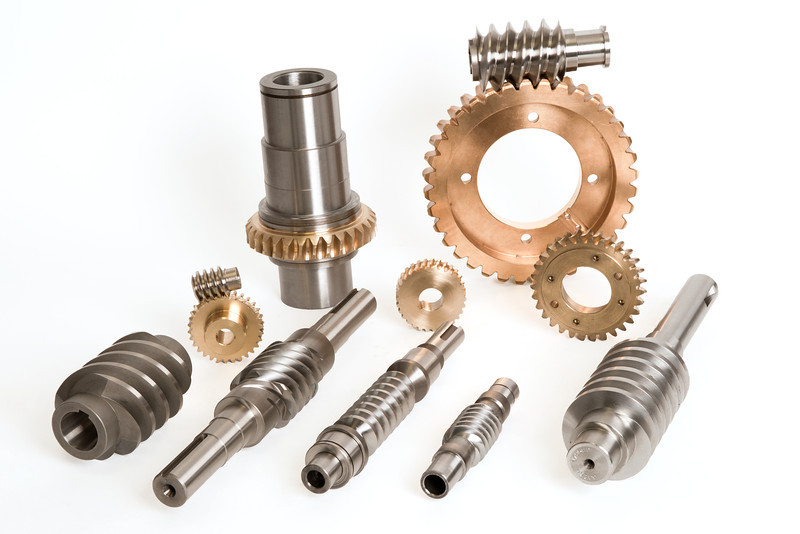

  • Worm Gears
  • Worms
  • Roller Chain Sprockets
  • Silent Chain Sprockets
  • Timing Belt Pulleys
  • Gear Segments
  • Broaching
    – Splines
    – Keyways
    – Shapes
    – Serrations
  • Wire EDM
  • Carbon Sink EDM
  • Gear Assembly
  • Gear Tooth Rounding
  • Gear Tooth Chamfering
  • Gear Inspection

KA-Wood Gear & Machine Company manufacturers gear blanks including CNC turning, milling, and grinding

KA-Wood Gear & Machine
32500 Industrial Drive
Madison Heights, MI 48071
